Corrugated Boxes

Delaware Valley Box and Lumber offers a wide variety of corrugated boxes to meet your packing needs.
We can provide:

  • Small and large quantities
  • Custom printing including company information, instructions, part numbers, and logos in one to four color
  • Die Cut Corrugated boxes, pads, shapes
  • Glued and stitched box sides
  • Skid Hood boxes
  • Foam lining and inserts
  • Cardboard packaging inserts
  • Bags for the packaging the product
  • Corrugated pads
  • Wood inserts with mounting hardware
  • Material
    • Single wall
    • Double wall
    • Triple wall
    • V3C
Regular slotted carton - Corrugated Boxes

Regular Slotted Carton (RSC)

Most common shipping box that is easily assembled where the flaps can be taped shut.

Center-special-slotted-container - Corrugated Boxes

Center Special Slotted Container (CSSC)

A very strong box since all flaps meet at the center creating a double layer of the thickness of the corrugated board.

Full overlap - Corrugated Boxes

Full Overlap (FOL)

The flaps on this box extend from one side to the other, making it an excellent box for heavy objects or rough handling.

half-rsc(hsc) - Corrugated Boxes

Half Slotted Carton (HSC)

The bottom is the same as an RSC box but with no top flaps. These boxes can be provided with a lid for a top cover.

Five-panel-folder-with-center-seam-closure(fpf) - Corrugated Boxes

Five Panel Folder (FPF)

A five-panel folder is an unglued corrugated box used for packaging large items and oddly shaped items.

Beers-style-tray(no-top) - Corrugated Boxes

Tray

Perfect for transporting small, lightweight loads. Easy-to-fold sides provide additional stability.

Pad - Corrugated Boxes

Pad

Corrugated cardboard sheets or pads are used extensively in shipping and packaging to protect or divide the contents within a carton or box.

Scored divider panels(sdp) - Corrugated Boxes

Scored Divider Panels (SDP)

Corrugated panels made to separate and protect products within a shipping container

Full-Telescope-Half-Slotted-Box

Full Telescope Half-Slotted Box (FTD)

Body Two-piece box, both sections of slotted style. Full depth cover.

Corrugated Flutes

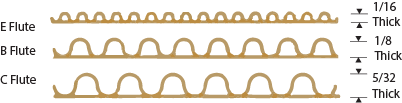

Singleface

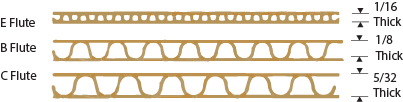

Singlewall

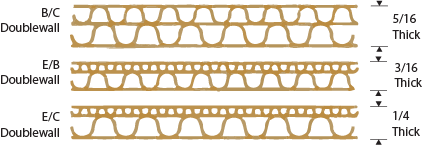

Doublewall

Corrugated Board Types
Single Face Board
Single Wall Board
Double Wall Board
Triple Wall Board
Maximum Weight Box Contents (lbs.) Maximum Outside Dimension (L+W+D) Minimum Burst Test Single Wall or Double Wall (lbs. per sq. in.) or Minimum Puncture Test Triple Wall Board (in oz. per in. tear) Minimum Combined Weight of Facings Minimum Edge Crush Test (lbs. per in width)
SINGLE WALL CORRUGATED FIBERBOARD BOXES
20 40 125 52 23
32 50 150 66 26
50 60 175 75 29
65 75 200 84 32
80 85 250 111 40
95 95 275 138 44
120 105 350 180 55
DOUBLE WALL CORRUGATED FIBERBOARD BOXES
80 85 200 92 42
100 95 275 110 48
120 105 350 126 51
140 110 400 180 61
160 115 500 222 71
180 120 600 270 82
TRIPLE WALL CORRUGATED FIBERBOARD BOXES
240 110 700 168 67
260 115 900 222 80
280 120 1100 264 90
300 125 1300 360 112

Mil-Spec Packaging

Delaware Valley Box and Lumber designs and manufactures a wide variety of military-spec packaging products. We will work to integrate your requirements within the standards for the specific product to assure compliance and the safety of the product.

Corrugated Products

Corrugated Sheets & Cut Shapes ASTM-D4727/ ASTM-D4727M-05
Corrugated Fiberboard Boxes ASTM-D5118/ ASTM-D5118M-OSA / PPP-B-636
